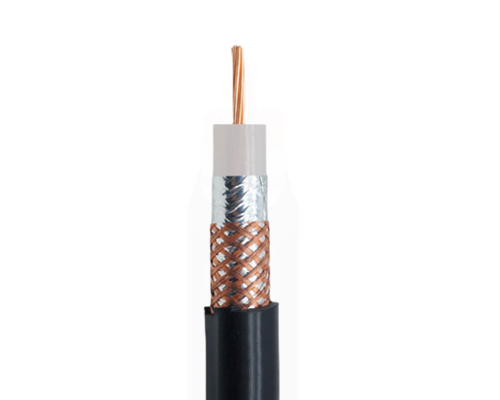

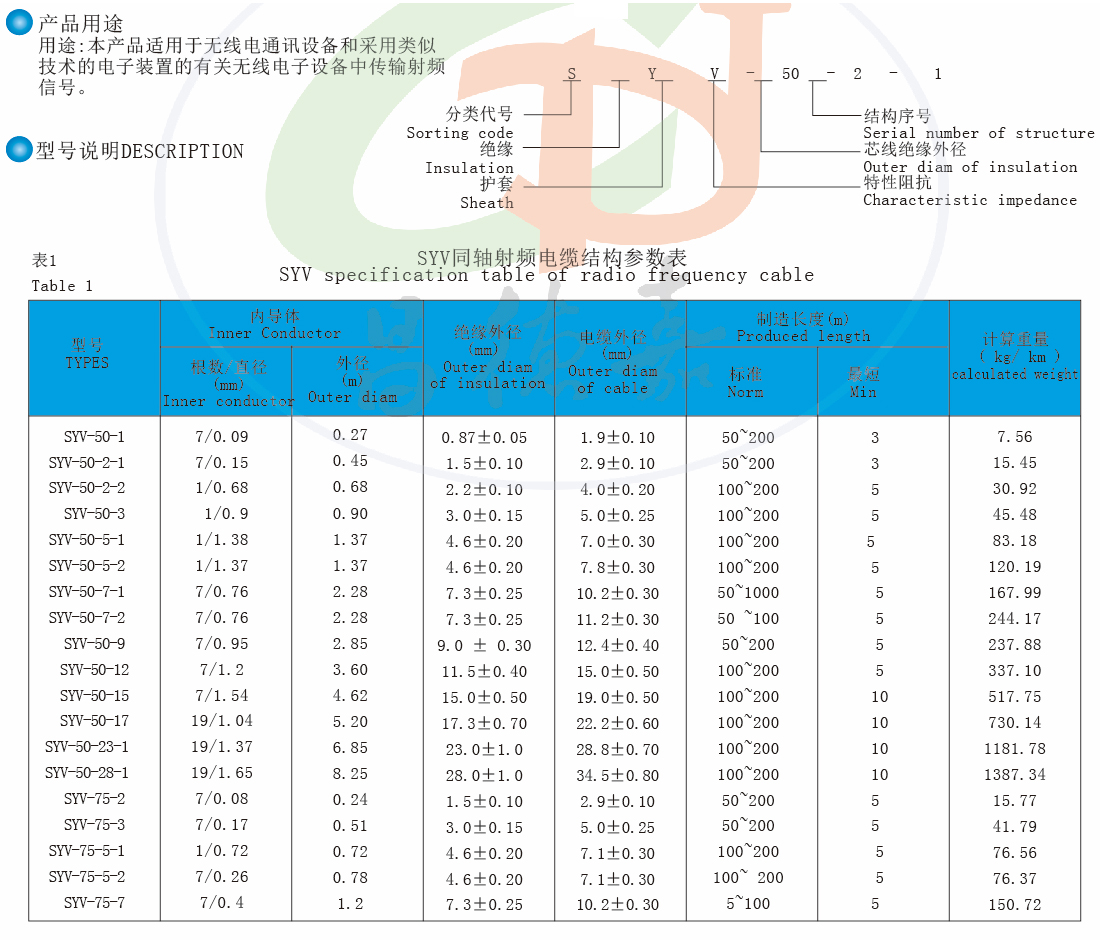

Radio frequency cable with solid polyethylene dielectric

Executive standard

GB/T14864-2013

Usage characteristics

Working conditions: the working temperature is allowed to be within the range of - 40 ℃ ~ + 65 ℃

Relative humidity: 98% when the temperature is + 40 ℃, and the laying temperature shall not be lower than - 15 ℃ during installation.

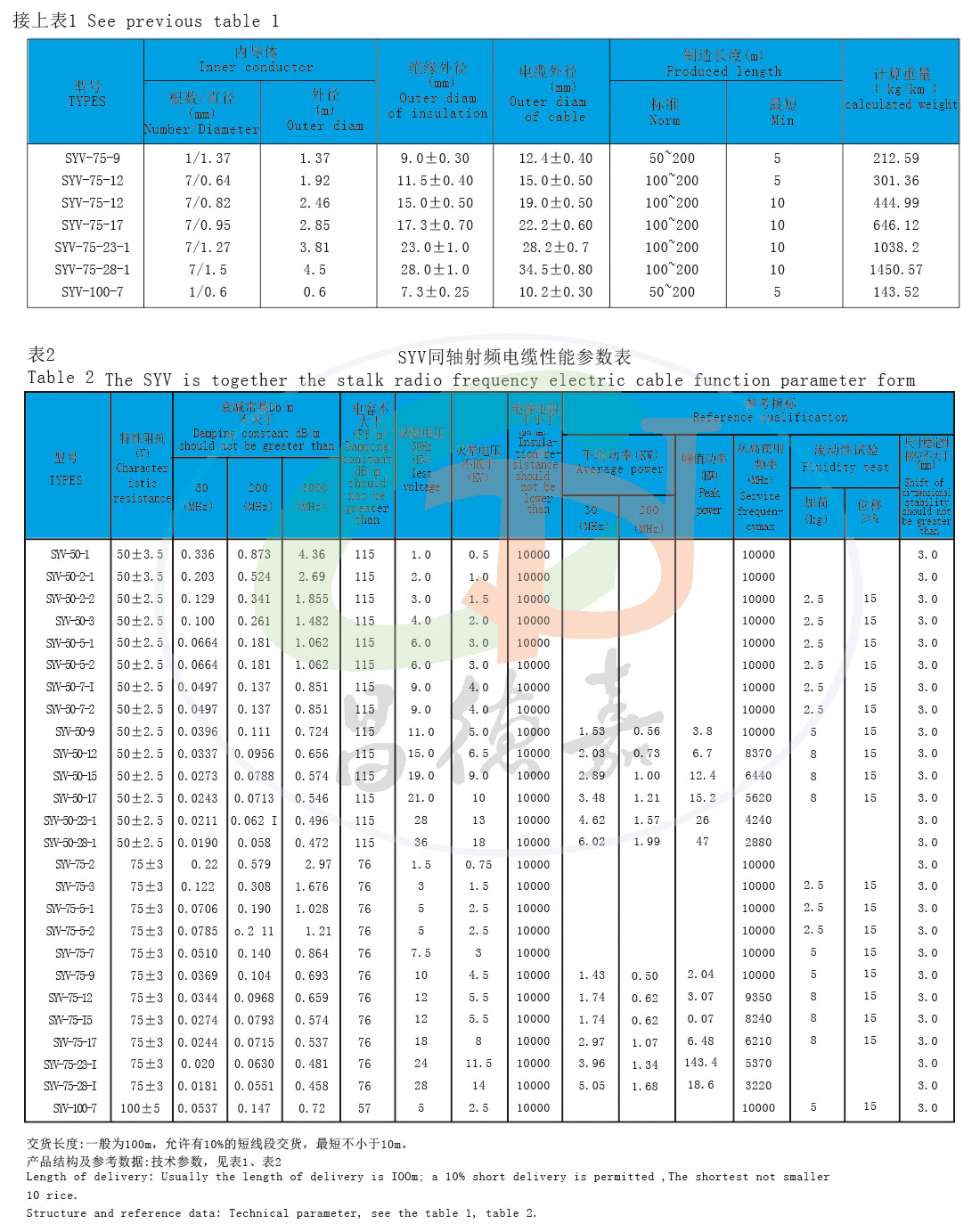

Main technical properties: 1) insulation resistance: not less than 10om Ω km; 2) 50 Ω capacitance is not more than 115pf / m, and 75 Ω capacitance is not more than 76pf / M; 3) Allowable minimum bending radius: not less than 5 times of cable outer diameter for indoor use and not less than 10 times of cable outer diameter for outdoor use

This product is applicable to the connection of daily electrical appliances, electric tools, electric machinery and various mobile electrical equipment. It has the weather resistance and oil resistance performance. The heavy rubber sheathed cable can also bear the external force of large machinery.

Technical performance

The rubber sheathed cable with product service temperature of - 45 ~ 60 ℃ shall be subjected to AC 50Hz ~ 2000v5min voltage test, and the service voltage is 300 / 500V. The bending radius of the cable shall not be less than 10 times of the outer diameter of the cable.

The use temperature of U-shaped product is - 45-100 ℃, and it is subject to AC 50Hz ~ 5min voltage test, with the use voltage of 0.6/1kv

1、 Product use

This product is applicable to all kinds of river and sea ships, offshore oil platforms and other water structures, as well as inland rivers, lakes and offshore fishing boats, etc., for transmission of electrical components.

2、 Usage characteristics

Rated voltage U/ U：0.6/1KV

Working temperature: butylbenzene type shall not exceed 70 ℃ (general type); Type B and C: not more than 85 ℃

Minimum ambient temperature: fixed laying - 40 ℃; Non fixed laying: - 15 ℃

1、 Product use

This product is applicable to various river and sea ships, offshore oil platforms and other water structures with AC rated voltage of 250V and below, and is used for circuits insensitive to interference.

2、 Usage characteristics

The rated voltage is 250V, and the long-term allowable working temperature of the cable is 70 ℃

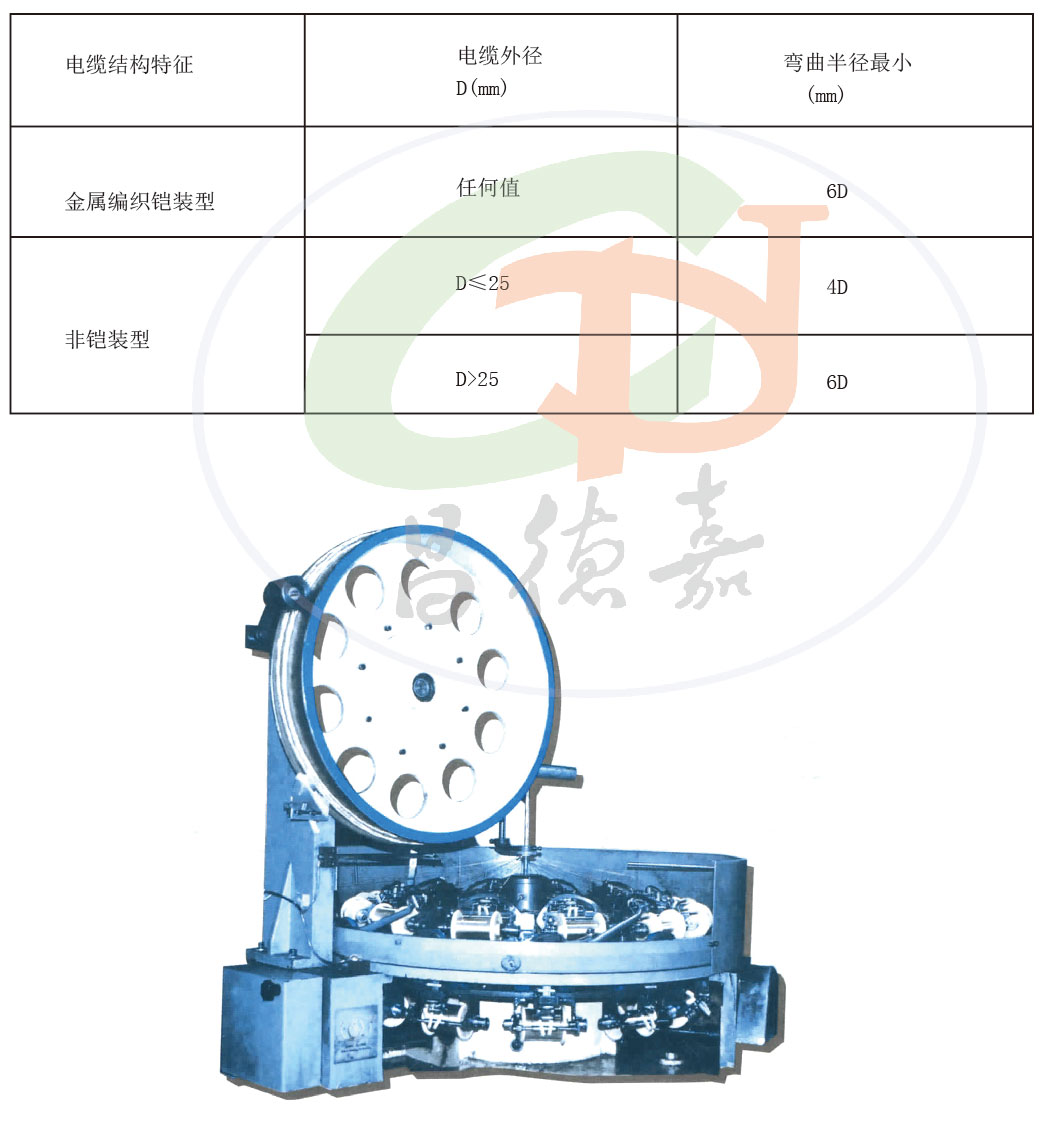

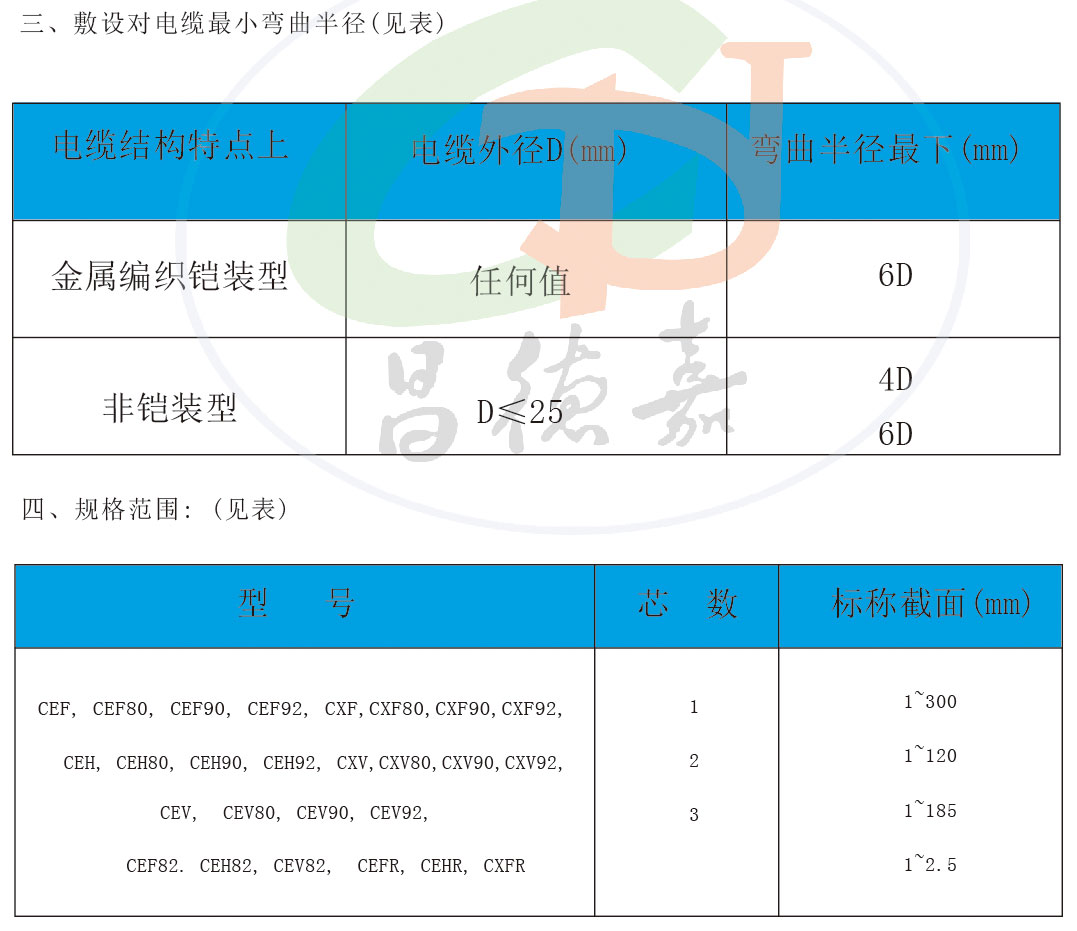

Minimum bending radius of cable during laying (see the following table)
